Graphing

Maxwell GeoSystems’ MissionOS provides its Clients the very latest choices in dynamic graphing options.

Flexible Graphing And Analysis

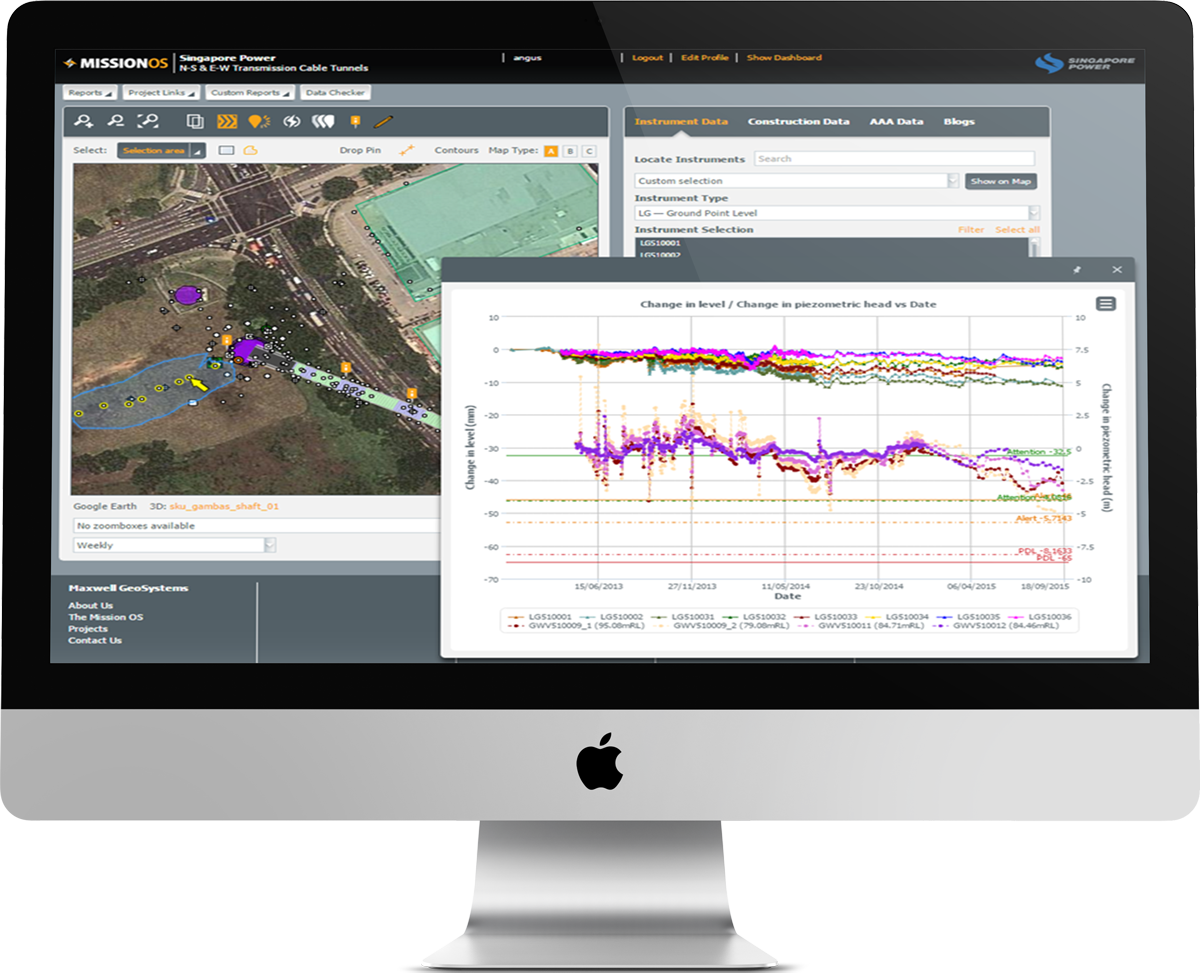

Interrogate Data and Explore Relationships, Create Canvases with Multiple Related Plots Using Interactive Graphs on the Web

The MissionOS has a highly flexible graphing engine to allow you to combine data of all types with drawings, comments and programme information in powerful ways to increase understanding.

  • Plots vs Time, Chainage, Proximity
  • Y1 vs Y2 Show different instrument types on a common X axis scale or instrument and TBM parameters
  • X vs Y Plot on parameter against another eg TBM parameters or other parameter using interpolation to link
  • Overplot Construction data – Show construction events which may have influenced results.
  • Overplot Graphs on Drawings – Show data against plans and sections eg. Convergence

All graphs can be saved as part of the Canvas sheets library

Graphing_1
Graphing_2

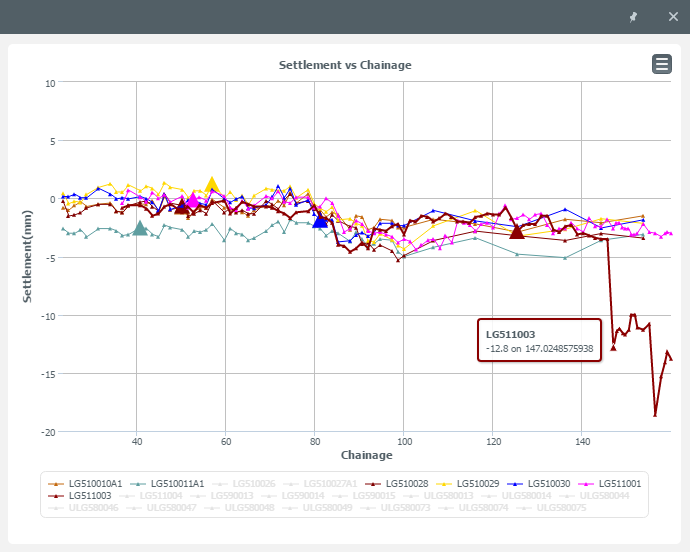

Plot against chainage axes

Graphing_2

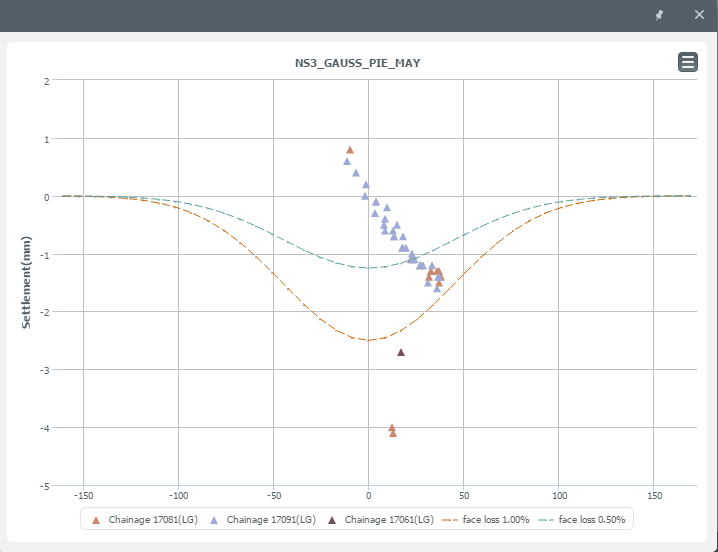

Design analytical plots like this gausssian prediction

Graphing_2

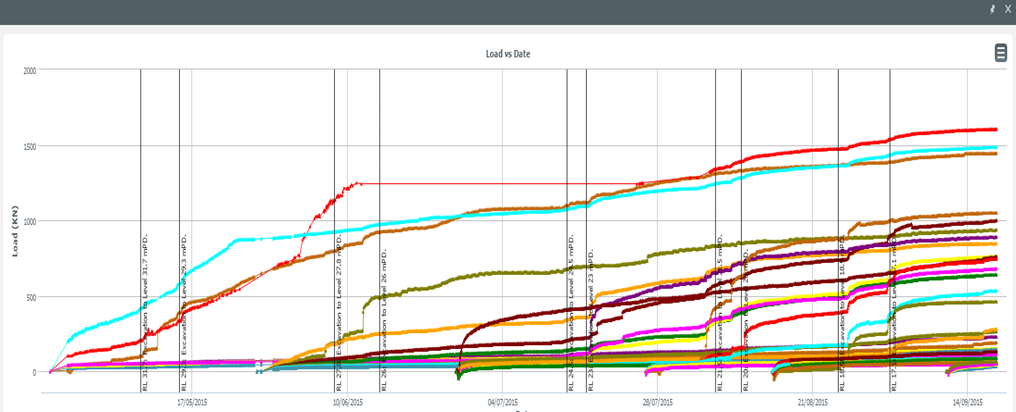

Progress Data over-plotted onto real time strain gauge monitoring data monitoring data

Graphing_2

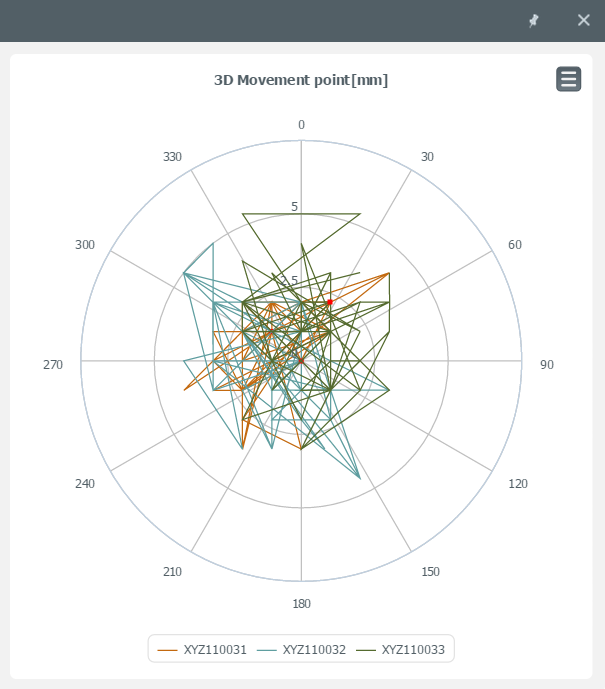

Simple XY and XYZ graphs
